CEMS Engineering and AAQMS Deployment: A Practical South African Guide

When an emissions limit, permit condition or internal ESG commitment depends on measured data, the monitoring system becomes part of the facility's compliance evidence. A reading is only as trustworthy as the sample point, probe, heated line, conditioning system, analyser, calibration practice and data path behind it.

This guide explains how to scope continuous emissions monitoring systems (CEMS), ambient air quality monitoring stations (AAQMS) and analyser systems as complete engineering projects. It is written for South African environmental, maintenance and project teams that need dependable measurements and audit-ready records.

CEMS, AAQMS and Process Analyser Systems

CEMS continuously measures pollutants or supporting parameters in a stack or duct. Depending on the process and licence requirements, the measurement train may cover particulate matter, SO₂, NOx, CO, oxygen, flow, temperature, pressure and moisture. The exact list must come from the applicable legal and operating basis—not a generic package.

AAQMS measures conditions in the receiving environment. Typical stations combine gas analysers, particulate monitors and meteorological instruments. Process analyser systems serve a different purpose: they measure process streams for quality, efficiency, safety or control. The technologies overlap, but siting, sample handling, data objectives and acceptance criteria differ.

Start With the Measurement Objective

Before choosing a brand or analyser principle, document what decision the data must support. Define the target components, expected ranges, required detection limits, averaging periods, availability target, reporting format and environmental conditions. Also identify who owns calibration gases, spares, routine checks, data review and statutory reporting.

Seven Engineering Decisions That Shape Performance

1. Sample Point and Station Siting

The stack location must provide a representative gas profile and safe access for inspection and reference testing. An ambient station must represent the monitoring objective without avoidable interference from nearby structures, exhausts or poorly considered airflow.

2. Measurement Principle and Range

Select technology against the target gas, matrix, interferences, moisture, dust loading and expected range. An analyser that performs well in a clean laboratory can struggle when the real sample contains corrosive condensate, fluctuating oxygen or high particulates.

3. Sample Conditioning

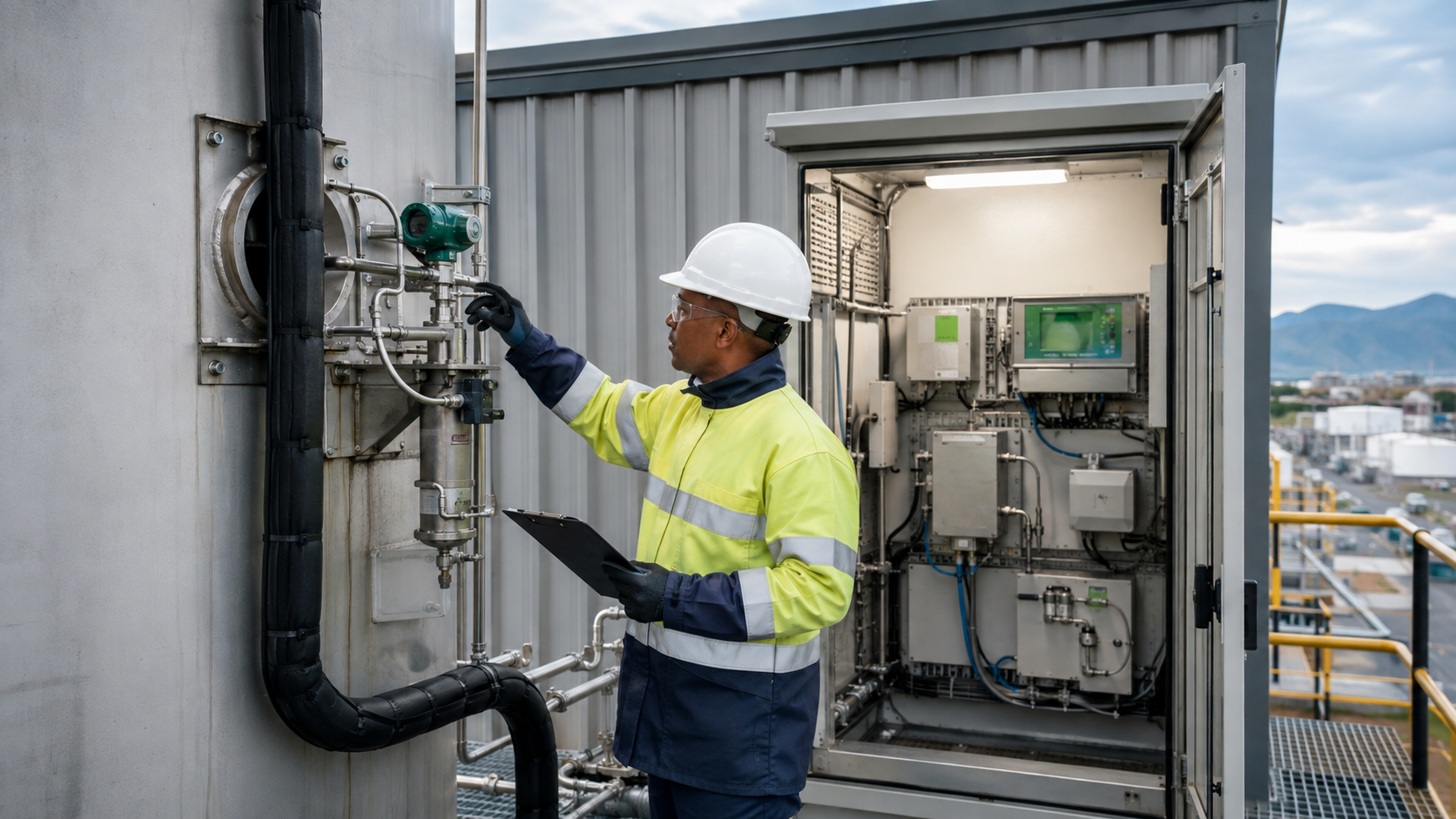

Probe filtration, heated transport, moisture removal, pressure regulation and flow control must protect the analyser without changing the component being measured. Every wetted material and temperature transition needs review.

4. Shelter and Utilities

Analyse heat load, HVAC duty, clean power, UPS autonomy, instrument air, calibration gas storage, ventilation, lighting, fire detection and hazardous-area requirements. The shelter is part of the measurement system, not merely a container.

5. Data Acquisition and Reporting

Raw values, status flags, calibration events, maintenance periods and invalid-data rules should pass into a traceable data acquisition and handling system. Agree interfaces with the DCS, SCADA, historian and reporting environment before build.

6. QA/QC and Maintainability

Design for zero and span checks, reference materials, inspection access, filter changes and fault isolation. A maintainable system makes quality control routine; a cramped one turns every check into a shutdown risk.

7. Lifecycle Support

Confirm local competence, critical spares, consumables, response times, obsolescence plans and training. Evaluate lifecycle cost and data continuity—not only the initial analyser price.

From Design Basis to Handover

A robust delivery sequence includes a user requirement specification, design basis, sample-system calculations, drawings, instrument and I/O schedules, cause-and-effect where applicable, FAT procedures, site installation records, SAT, performance verification, training and an indexed handover dossier.

The acceptance plan should test more than communication with the analyser. Challenge the full measurement path, alarm behaviour, failure modes, calibration sequences, time synchronisation, data flags and reports. Where regulatory interpretation is required, confirm the current licence and competent-authority requirements before freezing the design.
